Feather:

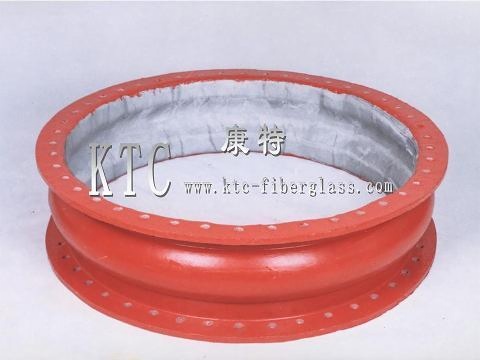

1. Multi-direction compensation: the non-metallic compensator can offer displacement in axed ,angular and corner, sideways direction in a limiter area.
2. Non-counter force:the main material is fiberglass cloth ,with no transport of force. If non-metal compensator is used ,design is simplified and big bracket avoided,it can also save much material and labor force.
3. Noise elimination & shock absorption: fabric and heat insulation wool has the capacity to absorb the noise and vibration
4. Excellent temperature resistance,corrosion resistance and seal property:those properties are attained by treatment from high polymer material ,such as organic silicon, fluorine.
5. Easy installation and maintenance
Usage:
1. Fire power house: boiler, exhaust system of the gas turbine, dust catcher system.
2. Petrochemical plant: bolier, exhaust & decarbolize system of boiler in industrial use , vent-pipe in wet and dry process.
3. Iron and steel works: blast furnace, convertor, exhaustn system.
4. Smelting factory: exhausting system.
5. Cement works: soot-disposal system
6. Istallations: inlet and outlet of dust collector, absorb tower, air-heater, blower.
|
Item
Code
|
Working temperature(°C)
|
Working Pressure（KPa）
|
Flange's material
|
Gas speed(m/S)
|
|
Highest temperature
|
Lowest temperature
|
Normal
|
Intension
|
|
A
|
≤100
|
-20
|
-20~+20
|
-40~+40
|
Q235-A
|
8-15
|
|
B
|
≤200
|
-40
|
-40~+40
|
-80~+100
|
Q235-A
|
8-15
|
|
C
|
≤3100
|
-60
|
-40~+40
|
-80~+100
|
Q235-A
|
8-15
|
|
D
|
≤4100
|
-60
|
-40~+40
|
-80~+100
|
20-35
|
8-15
|
|
E
|
≤650
|
-60
|
-40~+40
|
-80~+100
|
High performance steel
|
8-15
|
|
F
|
≤900
|
-60
|
-40~+40
|
-80~+100
|
High performance steel
|
8-15
|
